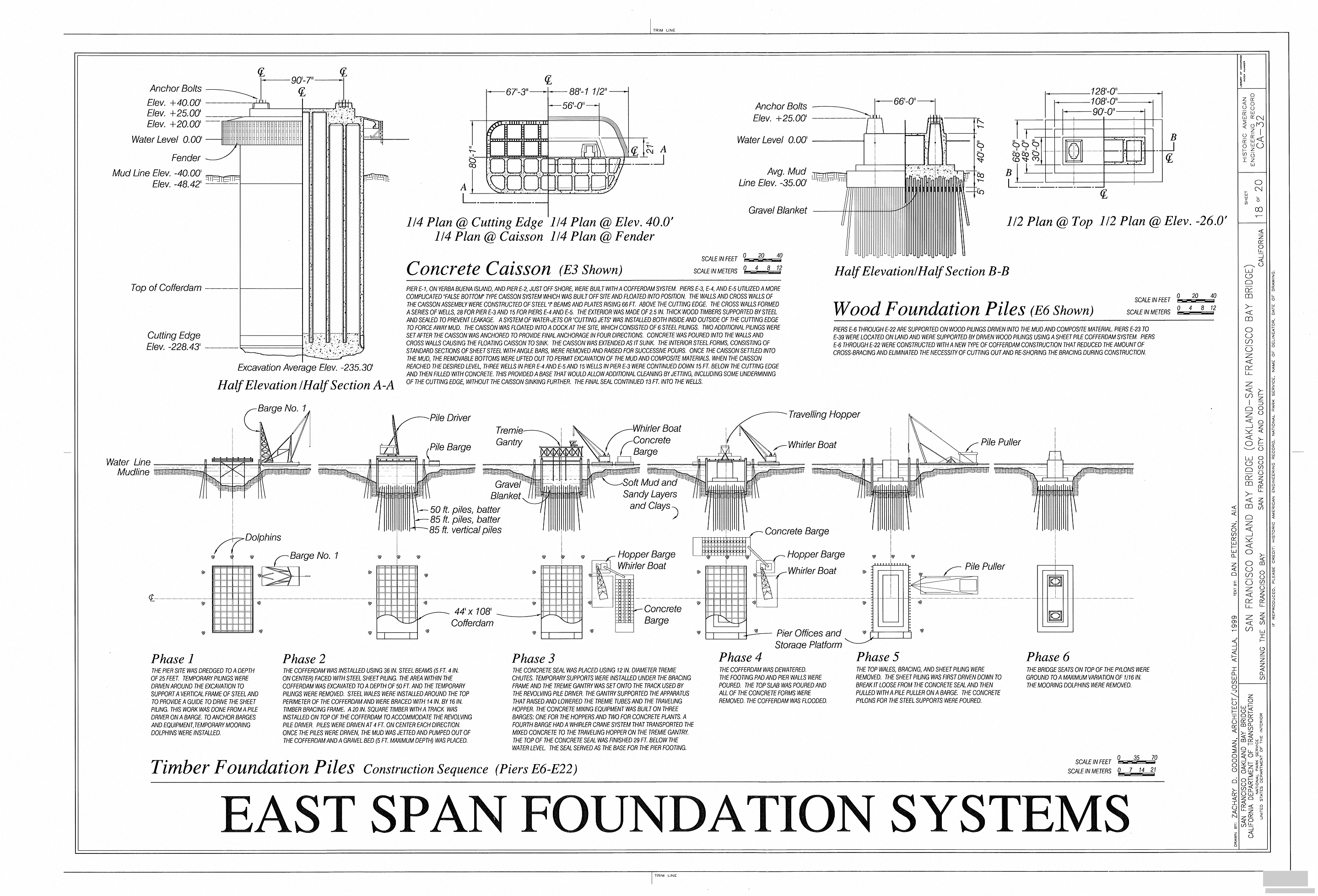

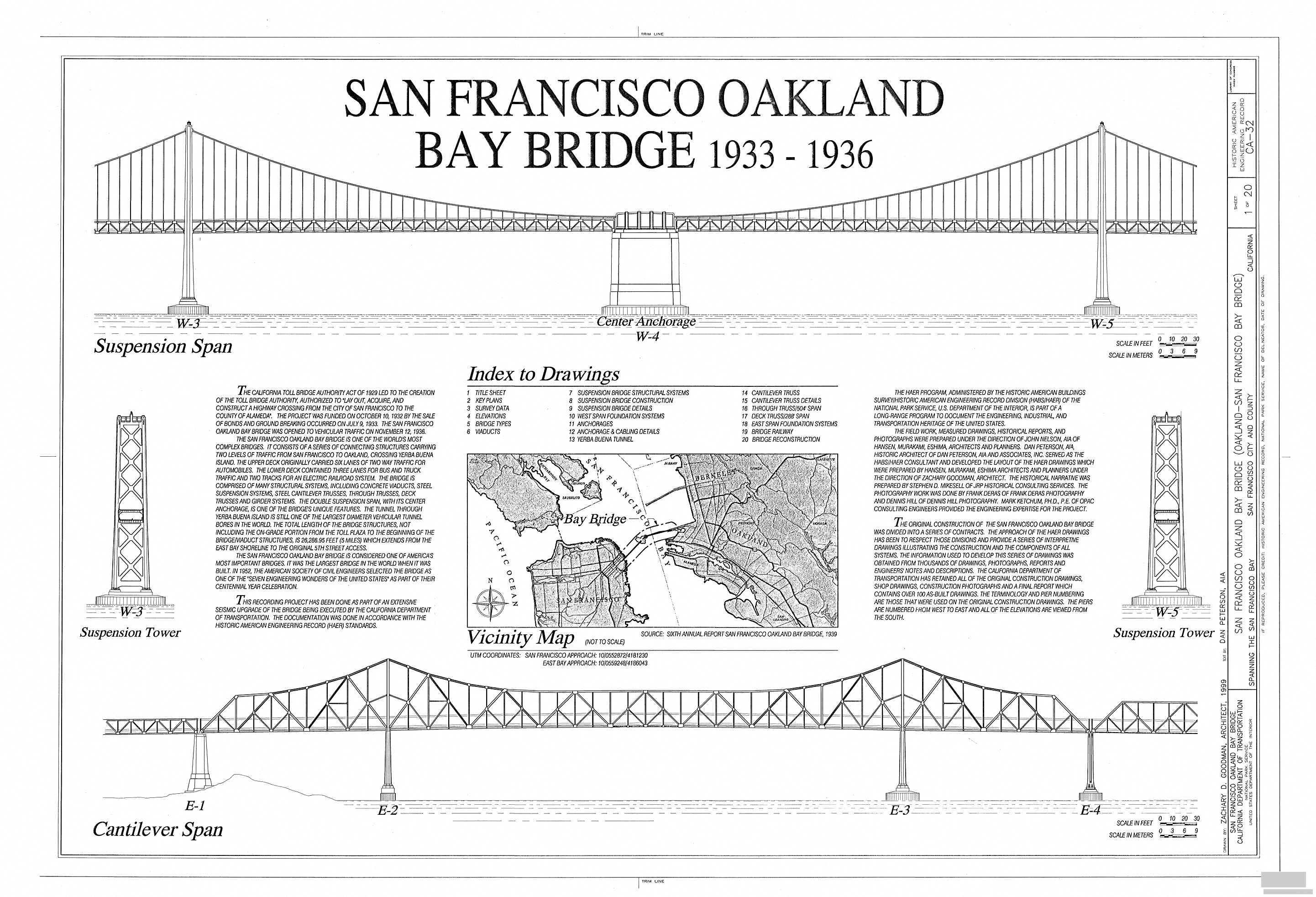

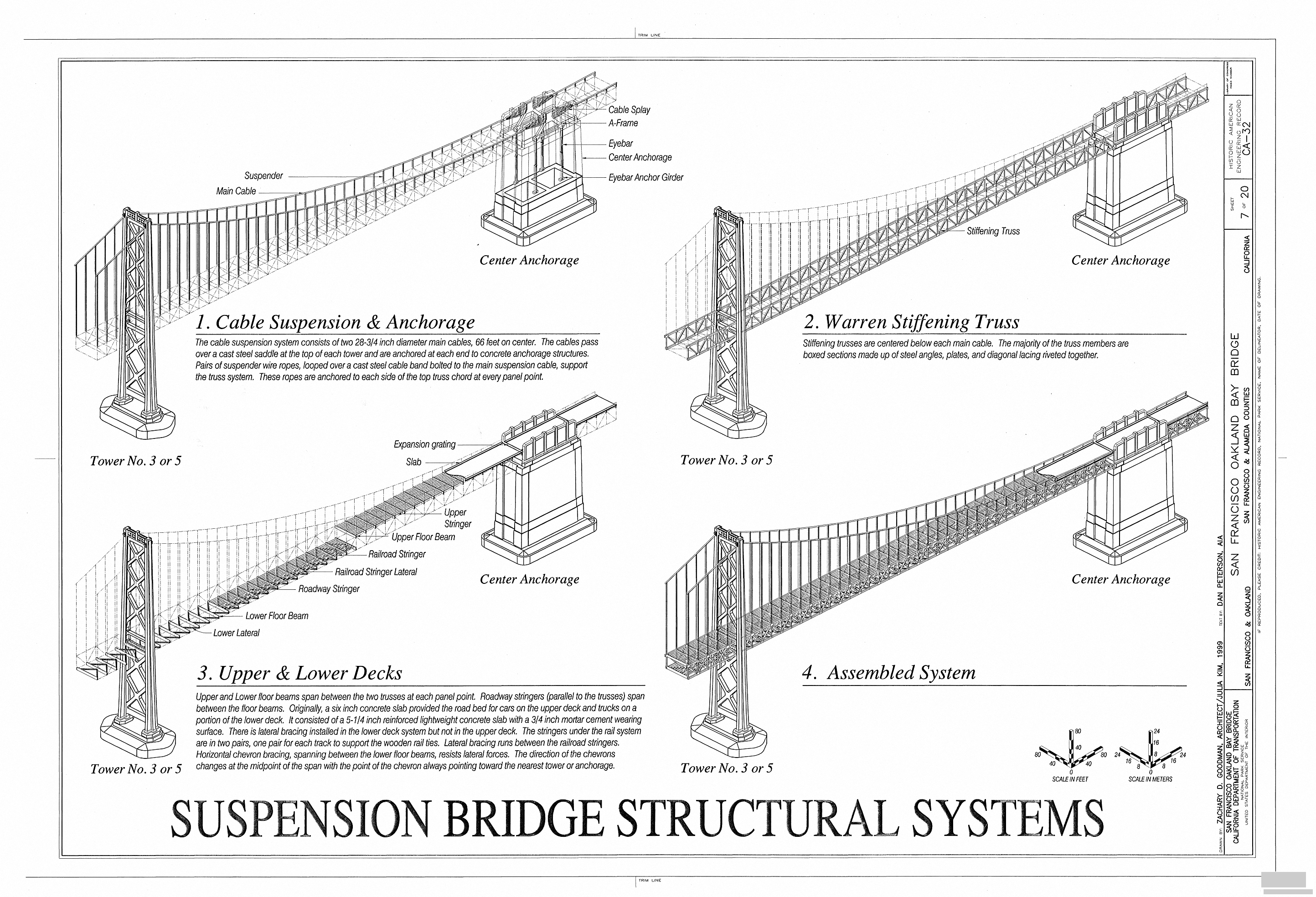

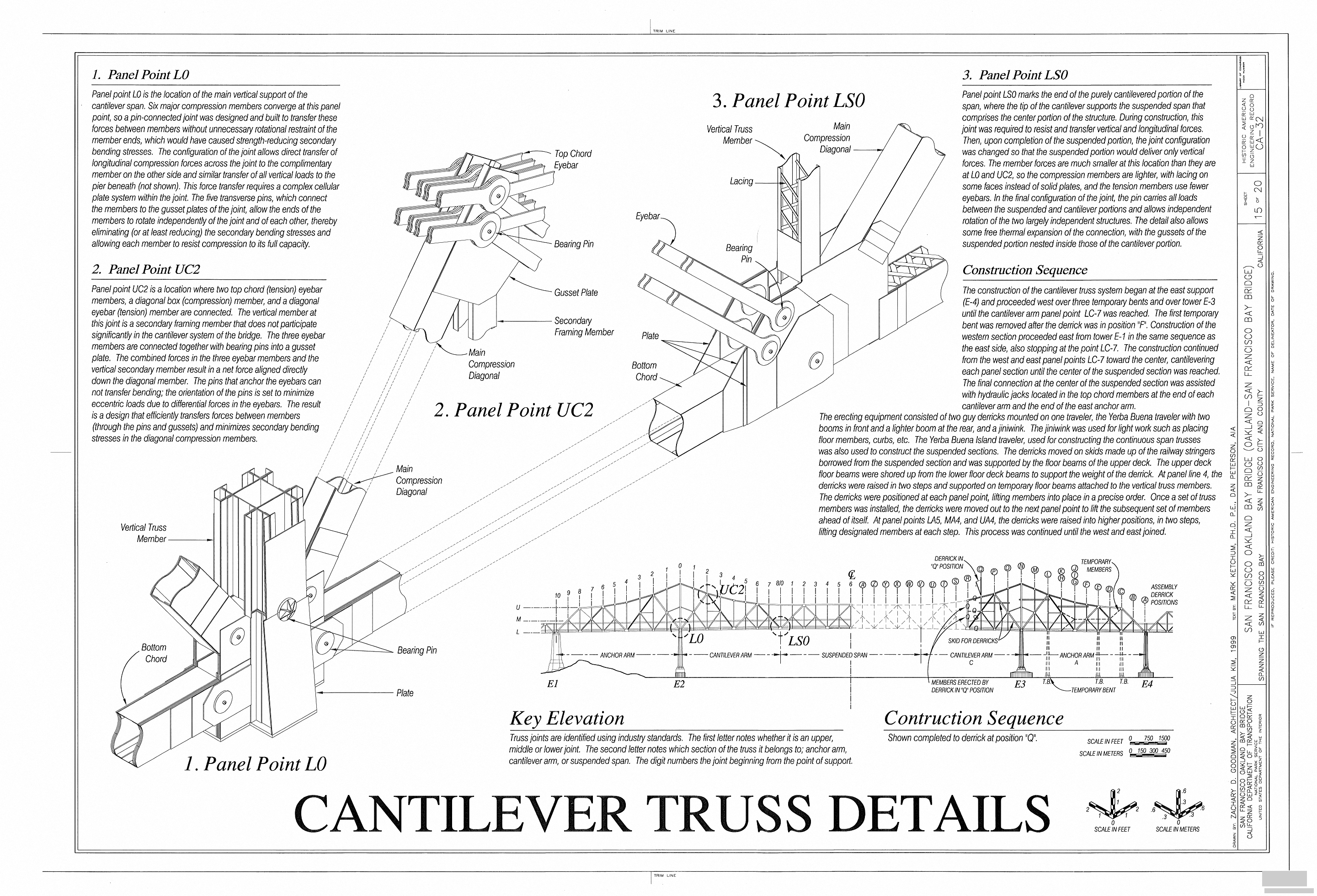

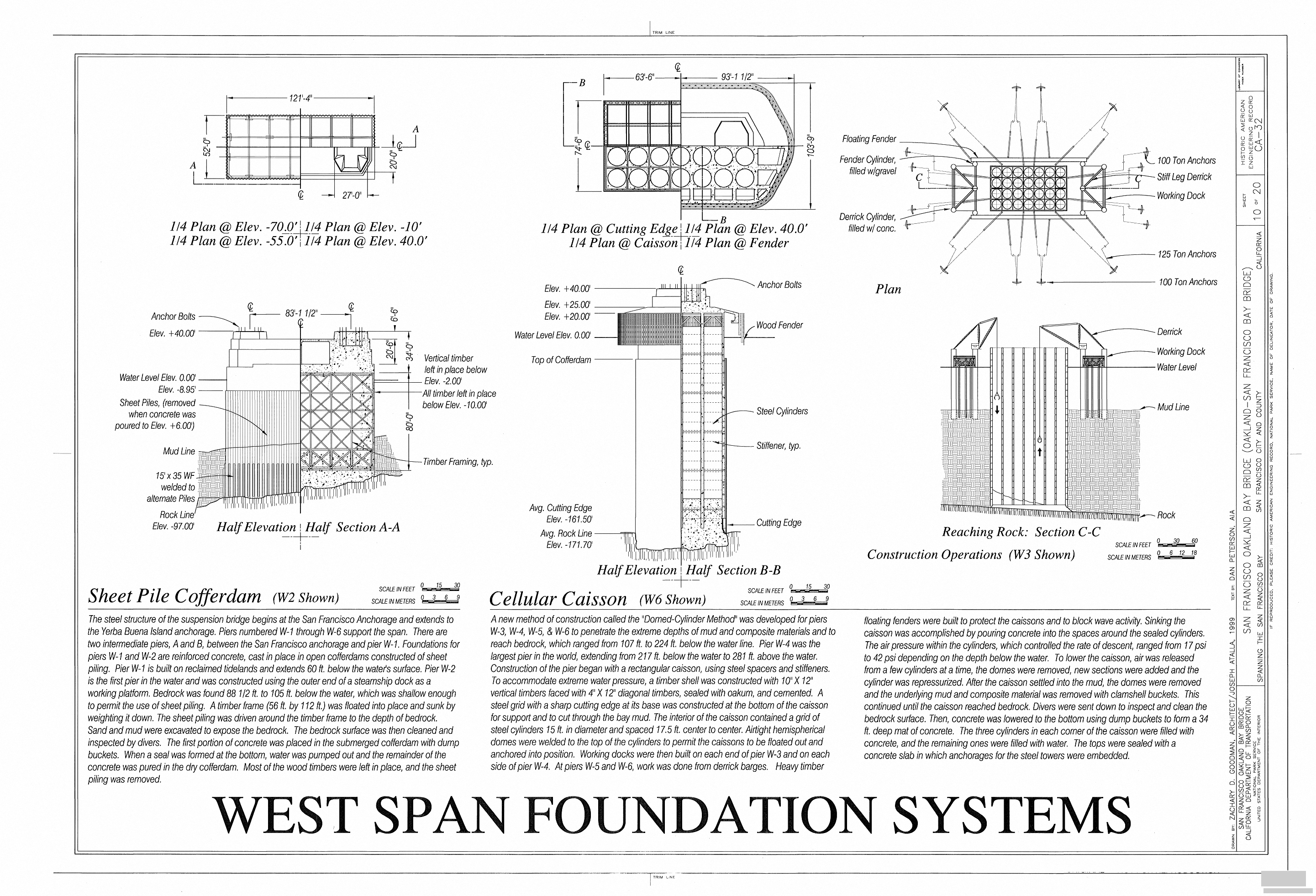

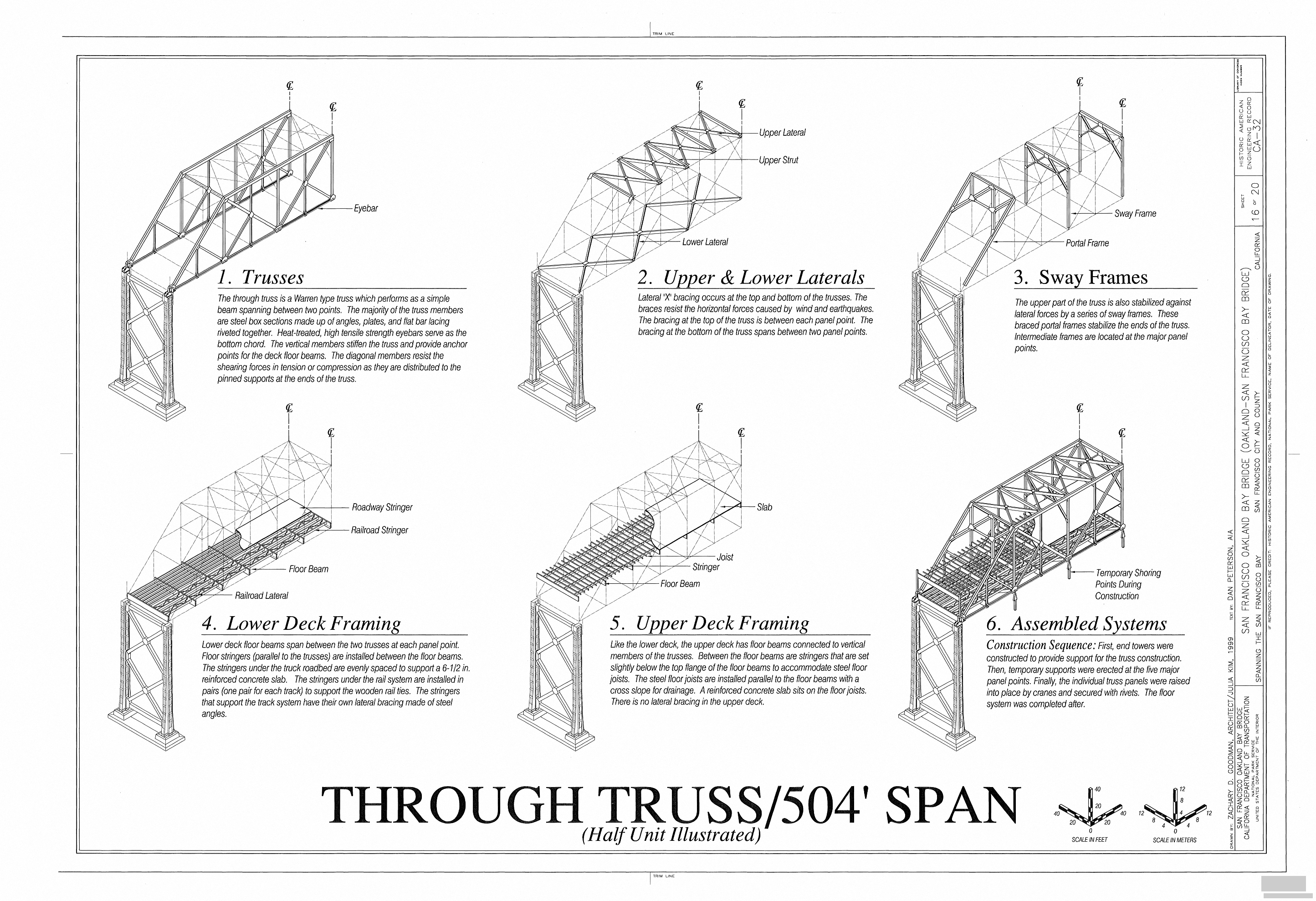

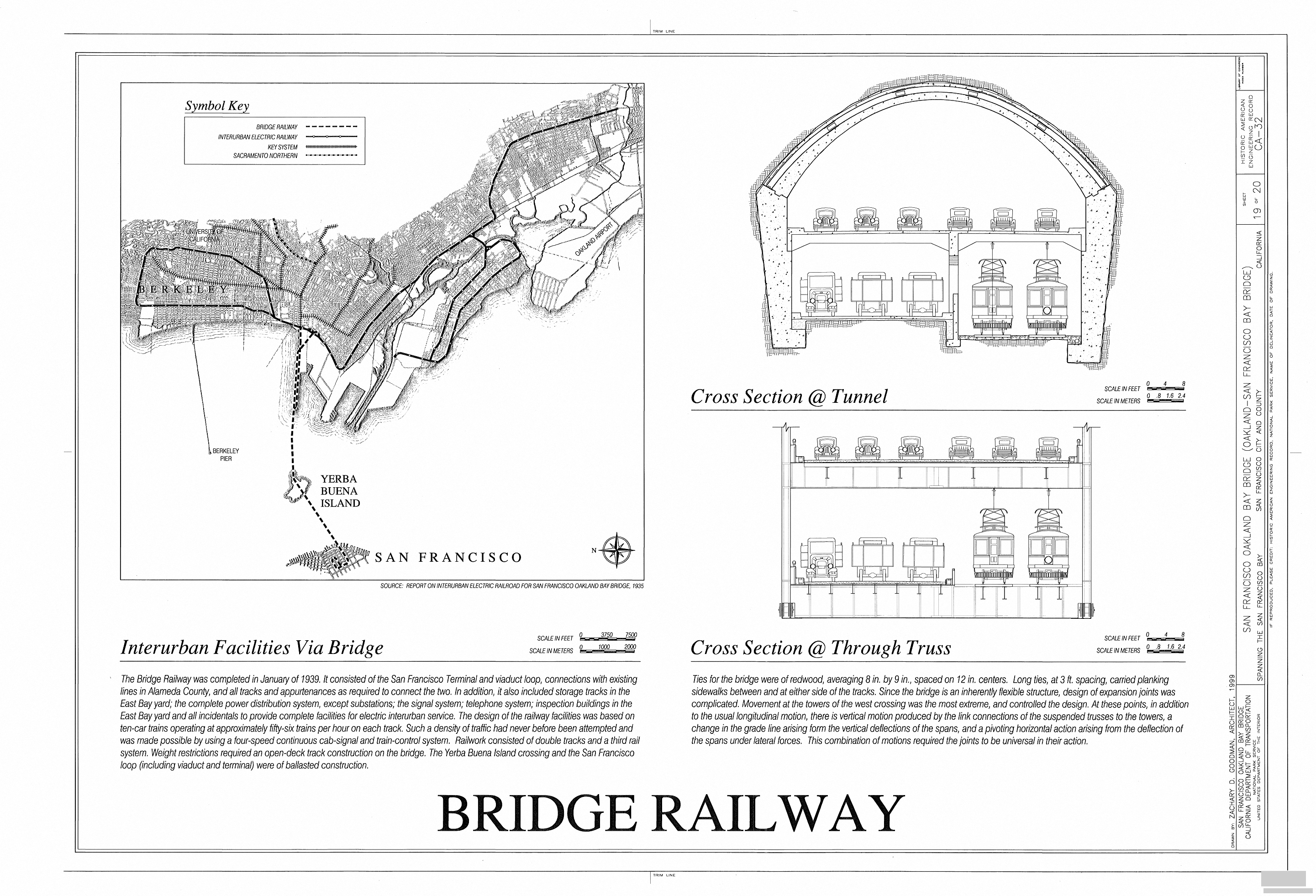

旧金山海湾大桥（老桥）建桥档案

AdminQTB 发表于 2017-11-23 22:47:39 | 显示全部楼层 | 阅读模式

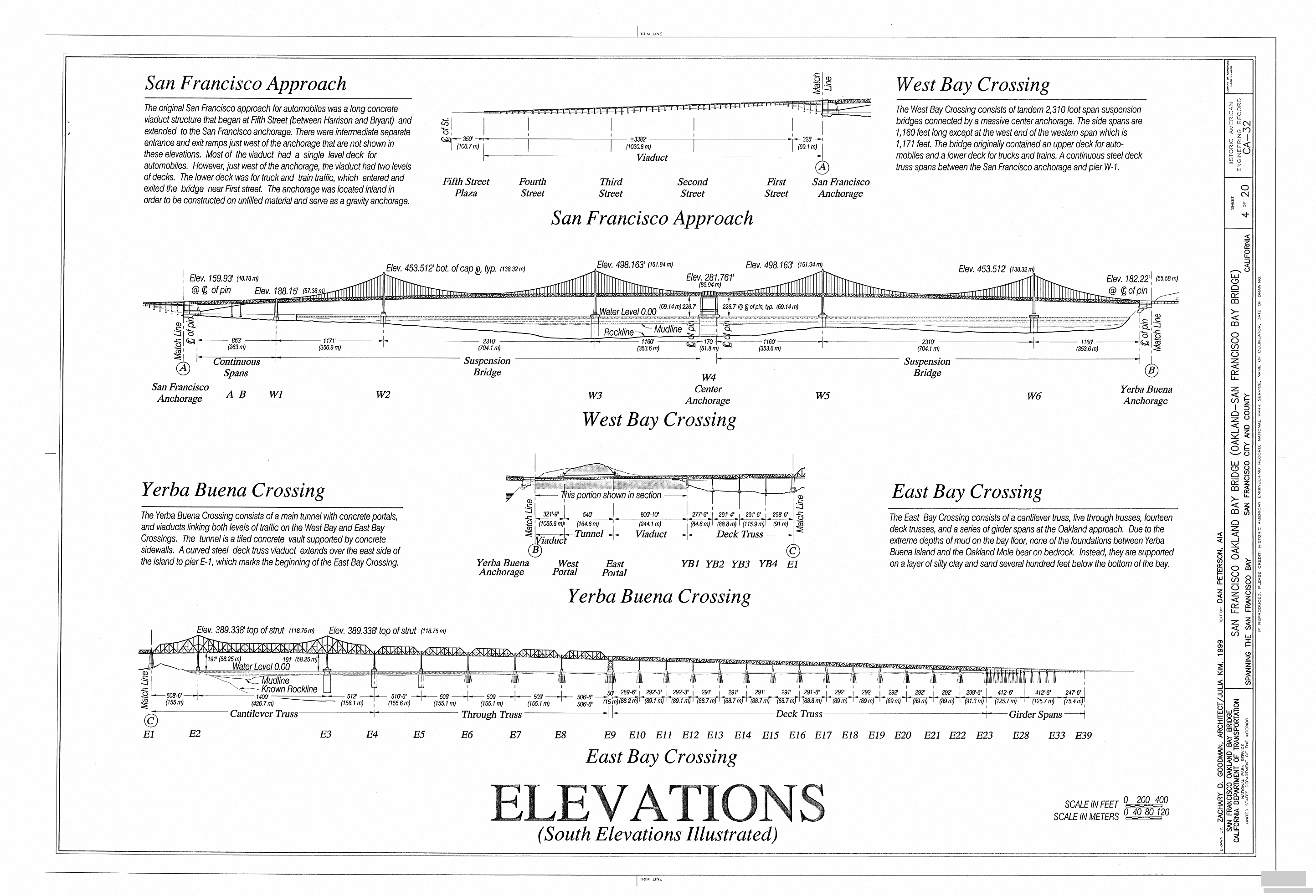

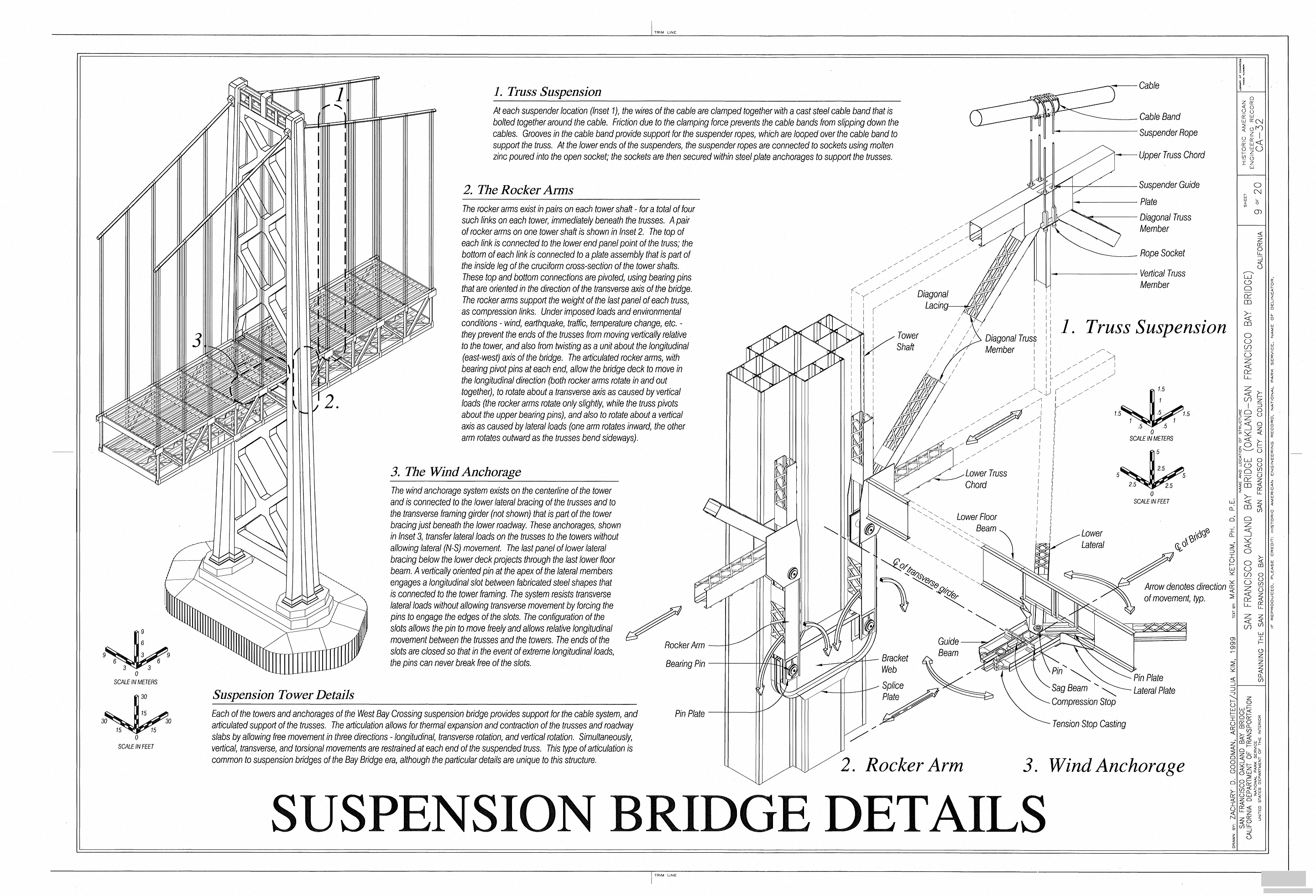

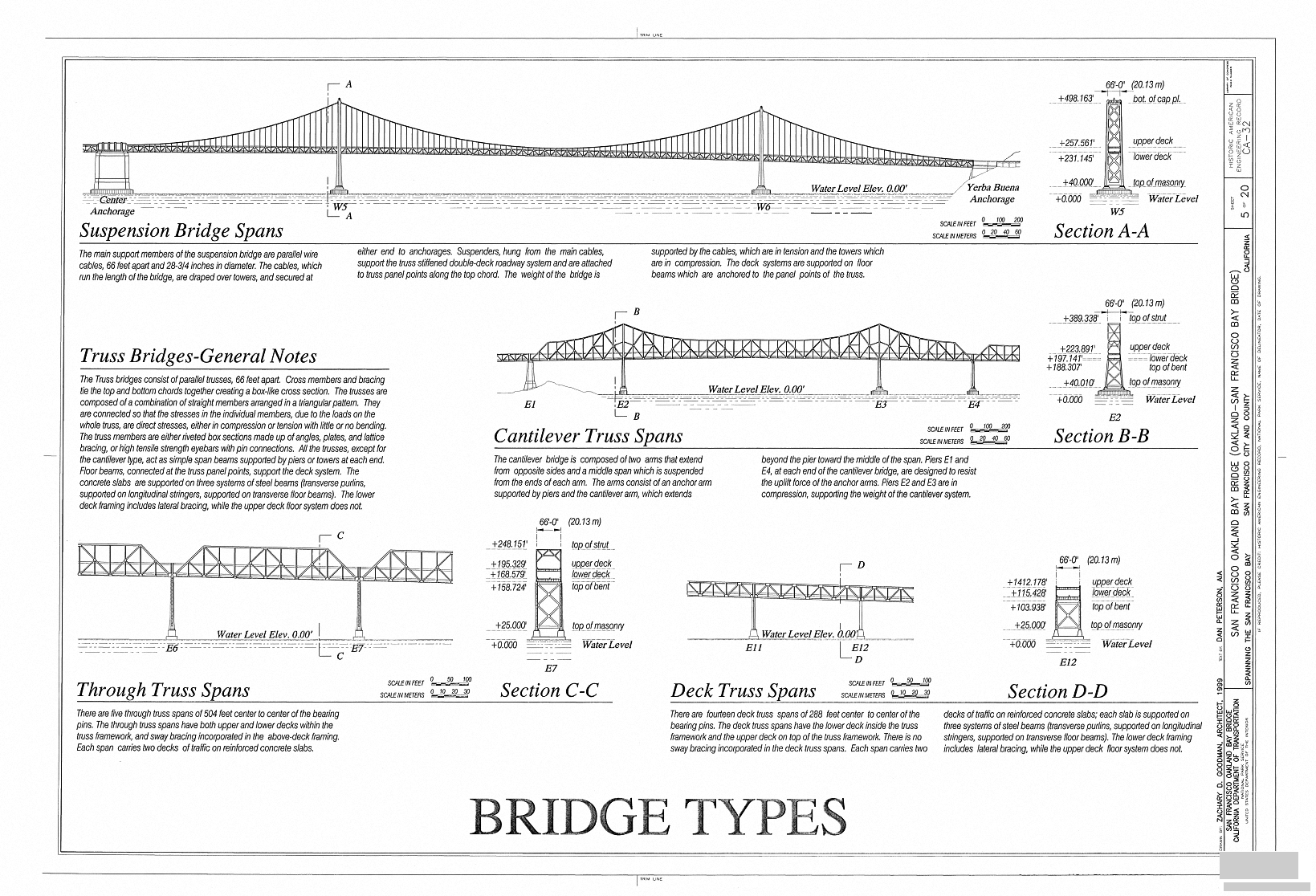

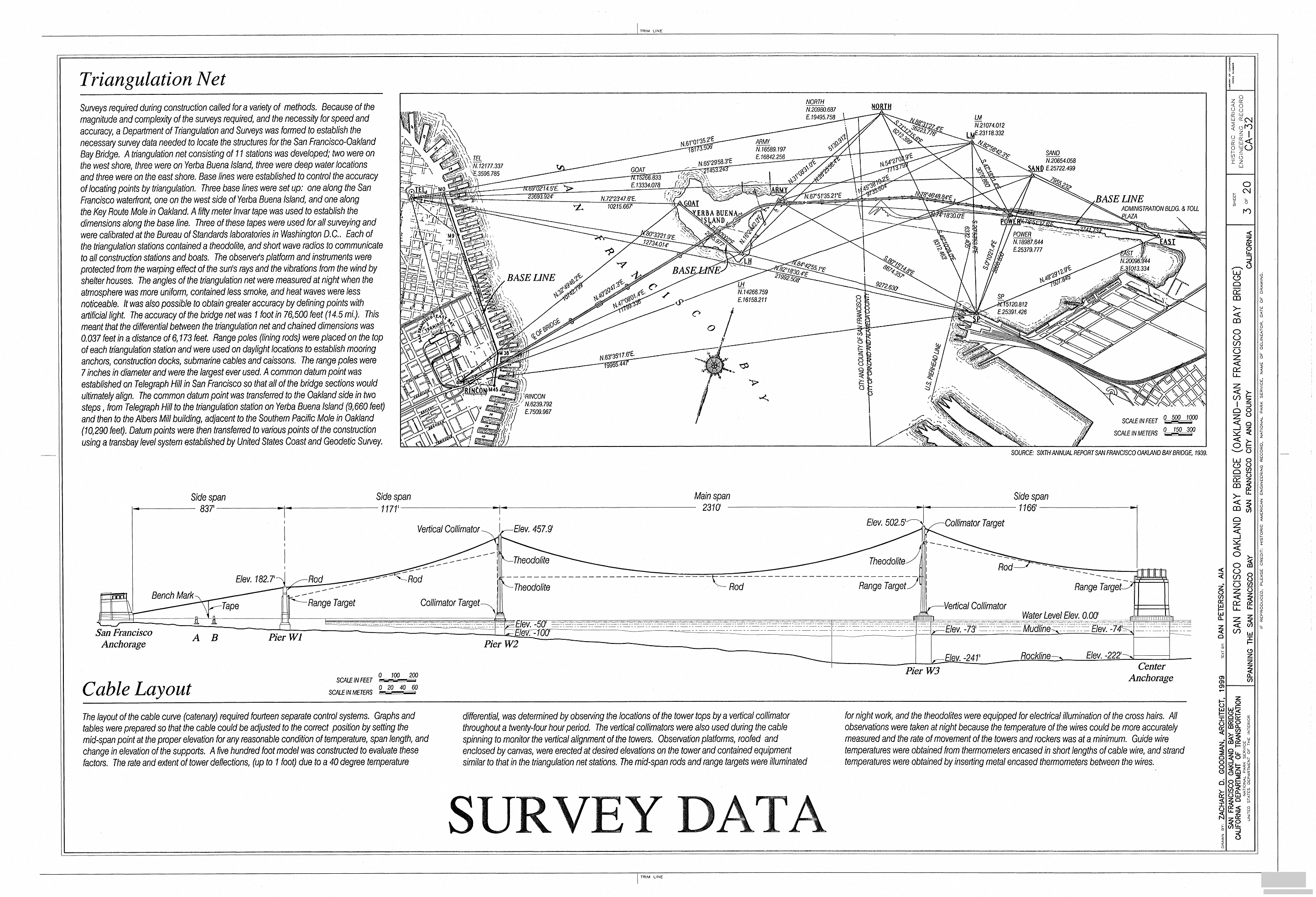

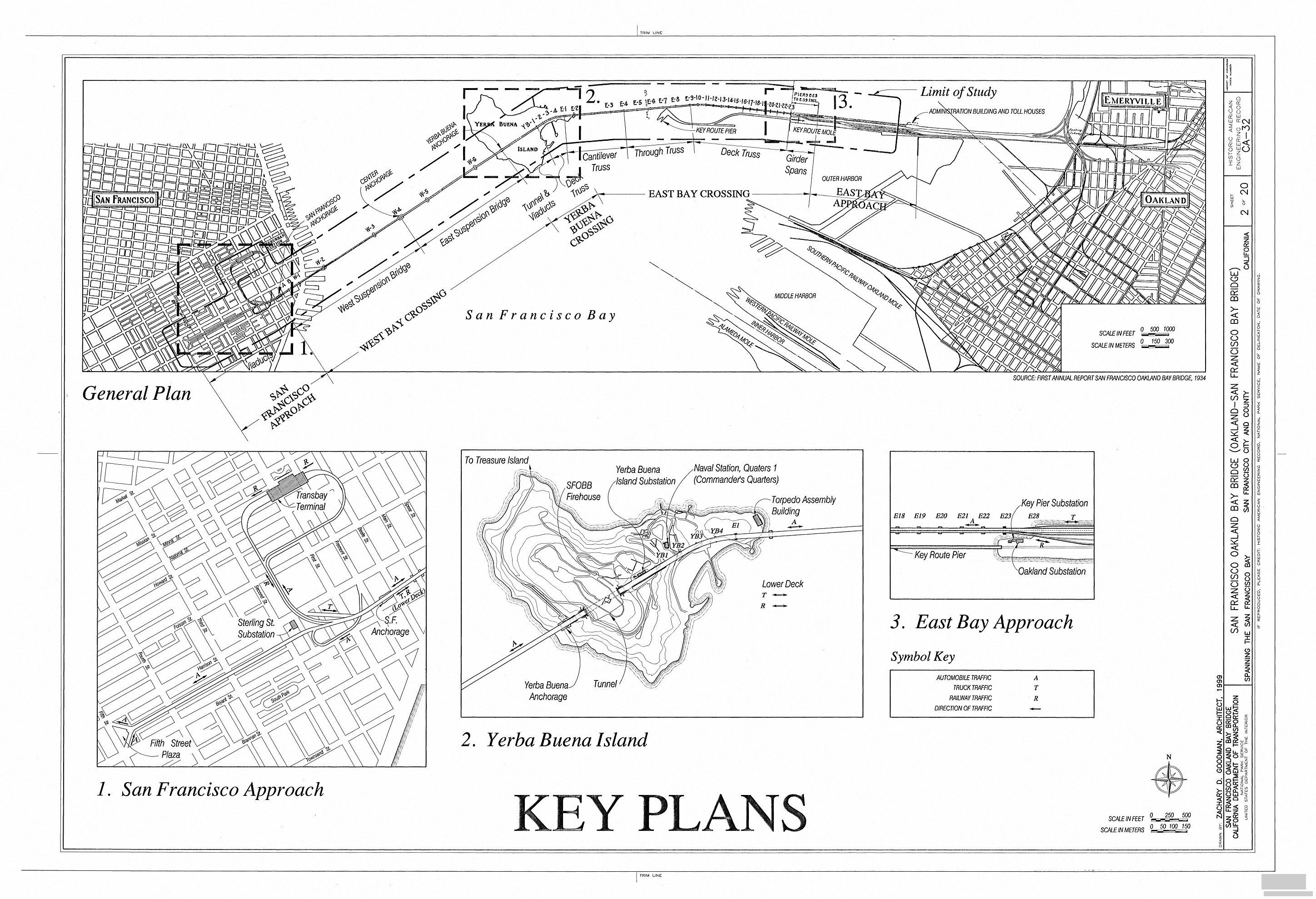

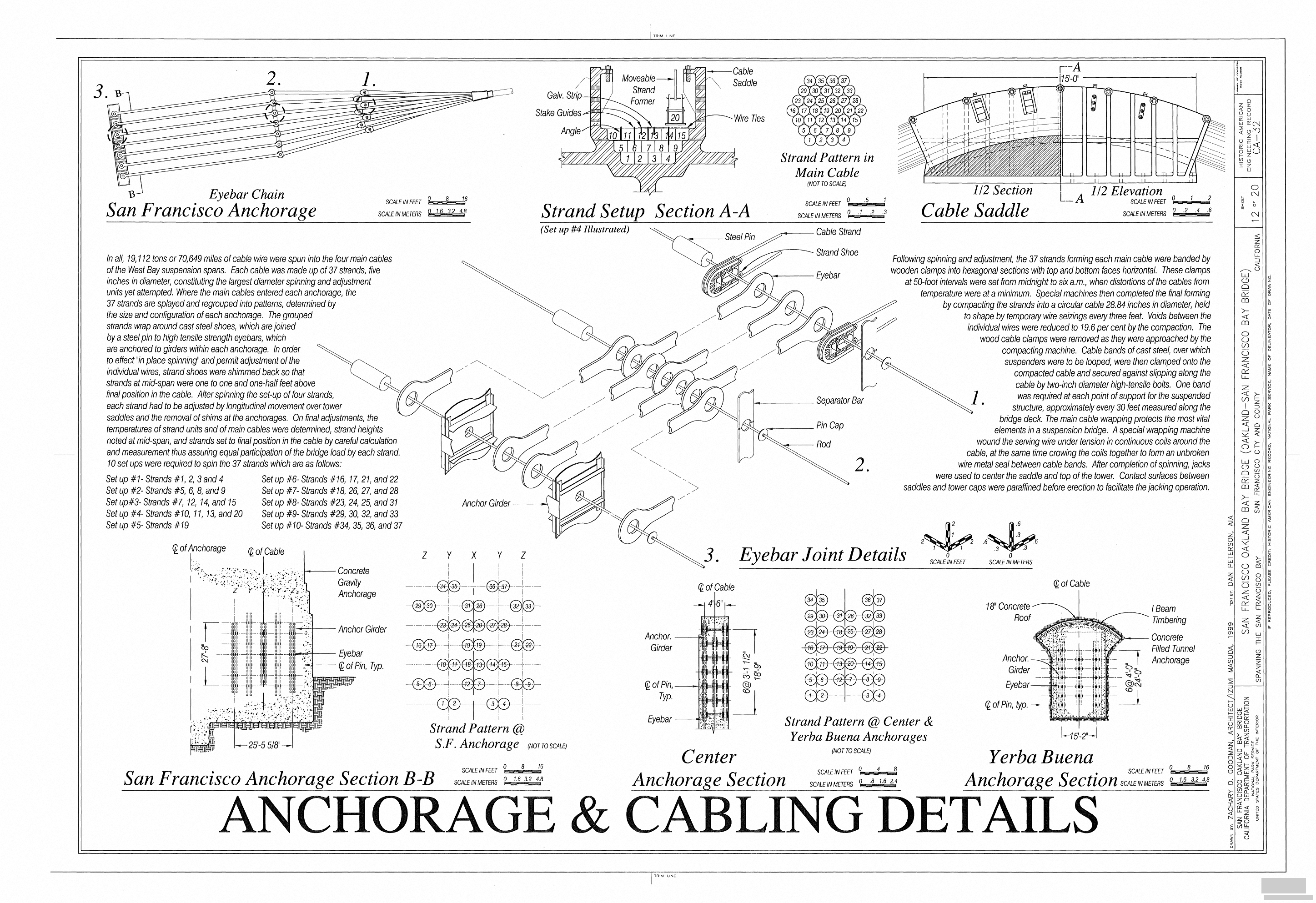

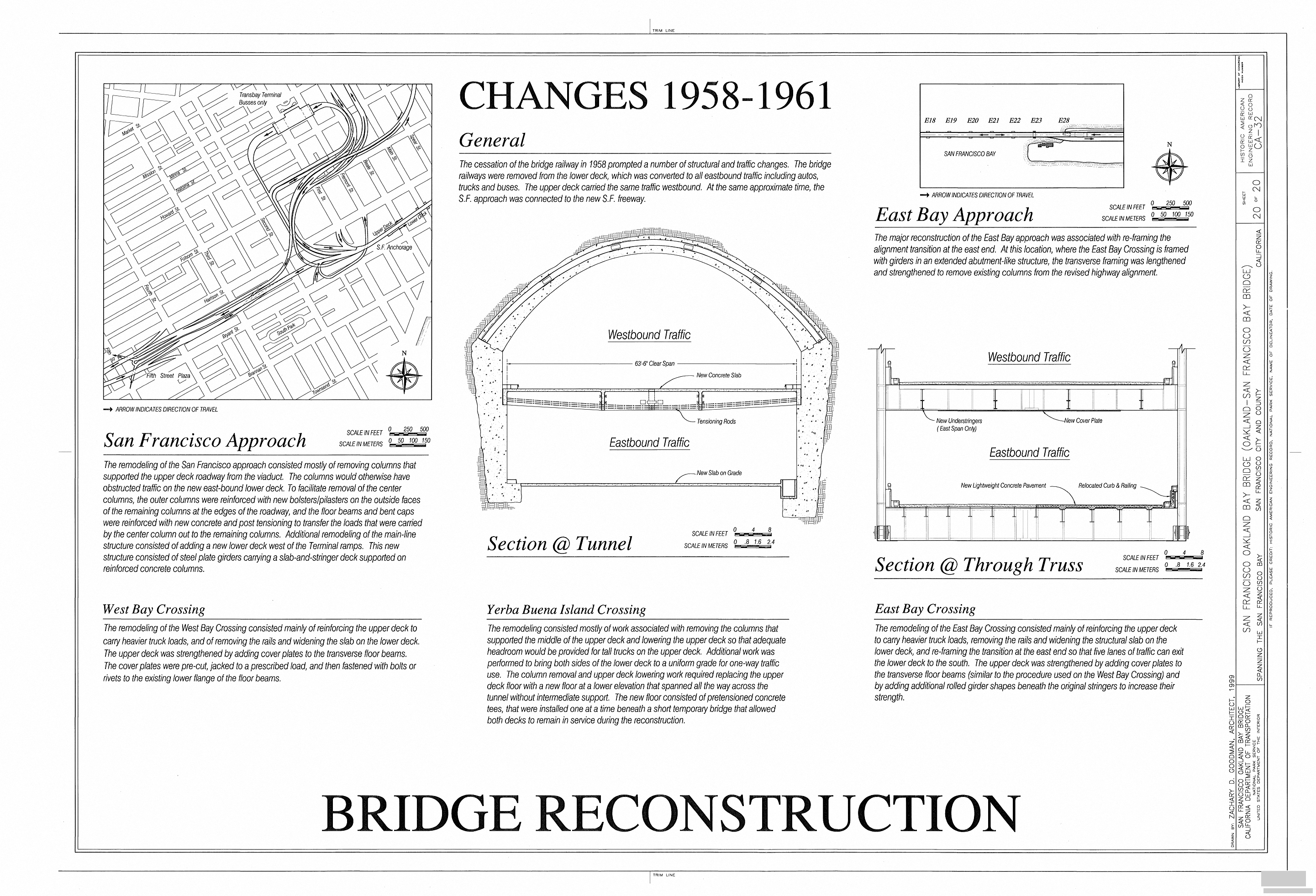

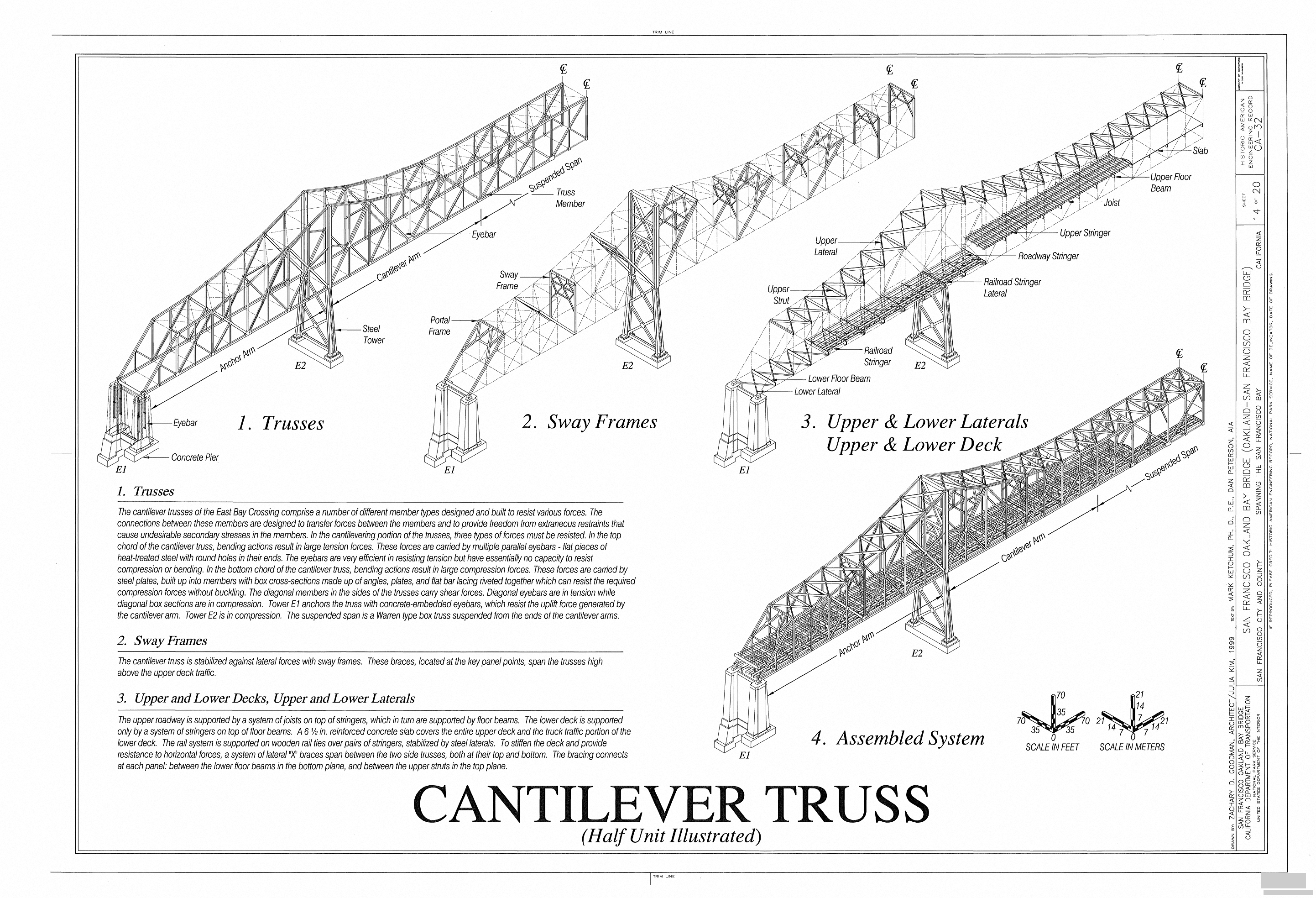

来自Historic American Buildings Survey













评分

参与人数 2	堡币 +8	威望 +6	收起理由
cjcc	+ 5	+ 5
子菁	+ 3	+ 1	赞一个!

查看全部评分

使用道具举报回复

精彩评论倒序浏览

6747查看5评论

AdminQTB 发表于 2017-11-23 22:58:50






举报回复

一磅缘 发表于 2017-11-30 11:54:51

有没更详细的资料？集中式的

举报回复

mole 发表于 2017-12-6 09:32:44

很感谢你分享的资料，谢谢

举报回复

子菁 发表于 2018-1-5 17:32:03

这资料确实很珍贵。对桥梁研究和美国桥梁历史研究很有价值。

举报回复
