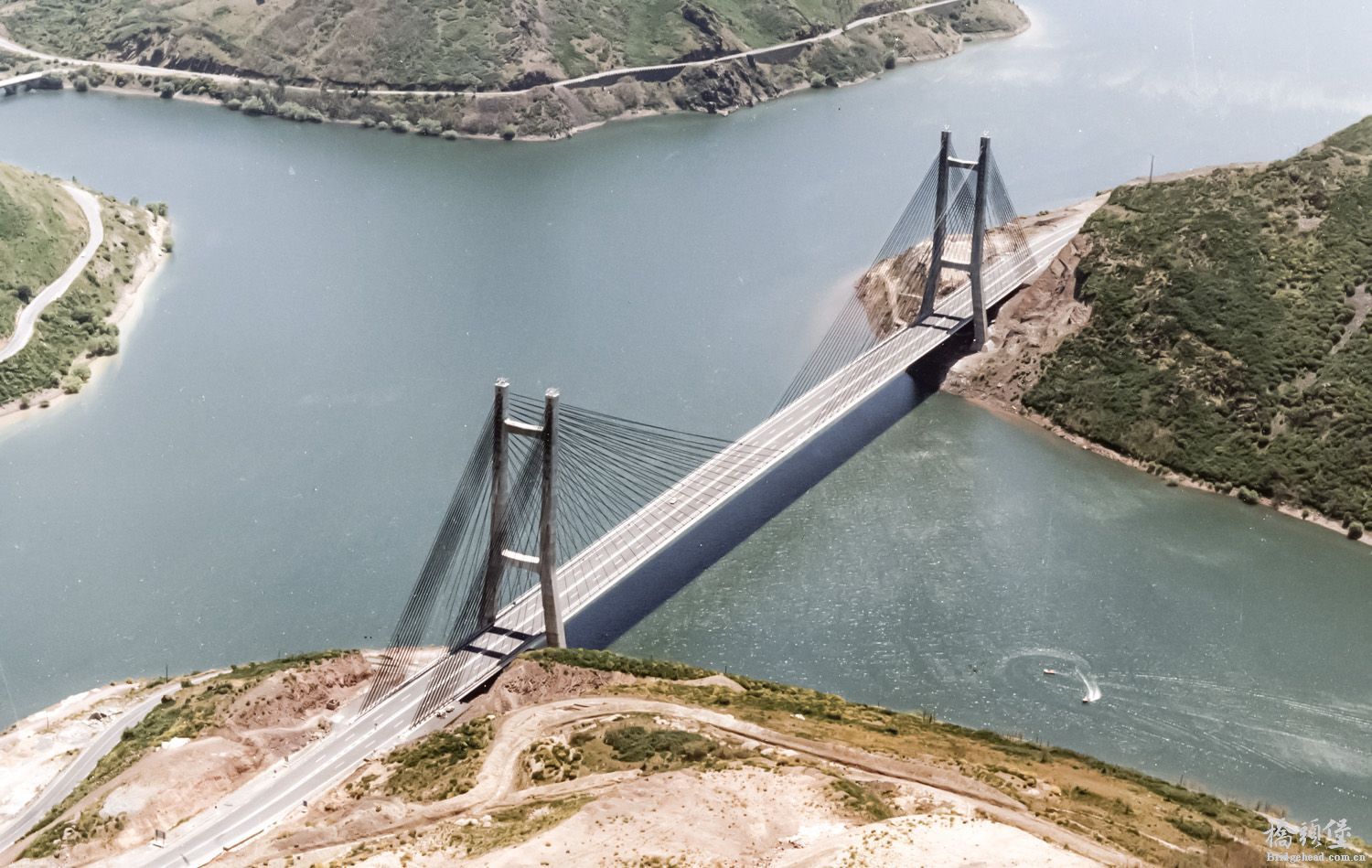

卡洛斯·费尔南德斯·卡萨多工程师大桥,又名巴里奥斯·卢娜桥,国内又翻译为“卢纳”或”鲁纳“大桥,是一座位于西班牙莱昂省的公路斜拉桥,跨越巴里奥斯·卢娜水库,承载AP-66高速公路(即“拉普拉塔高速公路”),大约在莱昂至奥维耶多之间半程的位置。
大桥于1983年建成,并以西班牙工程师卡洛斯·费尔南德斯·卡萨多(1905-1988)的名字来命名,由卡洛斯·费尔南德斯·卡萨多有限责任公司(西班牙语:Carlos Fernández Casado, S.L.)设计,这家成立于1966年的西班牙工程公司,当时由哈维尔·曼特若拉主持。
大桥主跨440米,曾是世界上主跨最长的斜拉桥及最长的混凝土斜拉桥,其斜拉桥主跨纪录于1986年被加拿大的阿力克斯·菲沙桥所超越,而混凝土斜拉桥的主跨纪录直到1991年才被挪威的斯堪桑德大桥所超越。同时,截至2014年,在加的斯的拉佩芭大桥建成之前,该桥一直是西班牙主跨最长的斜拉桥。大桥为双向四车道,两侧各设有一条为维护人员使用的步道。

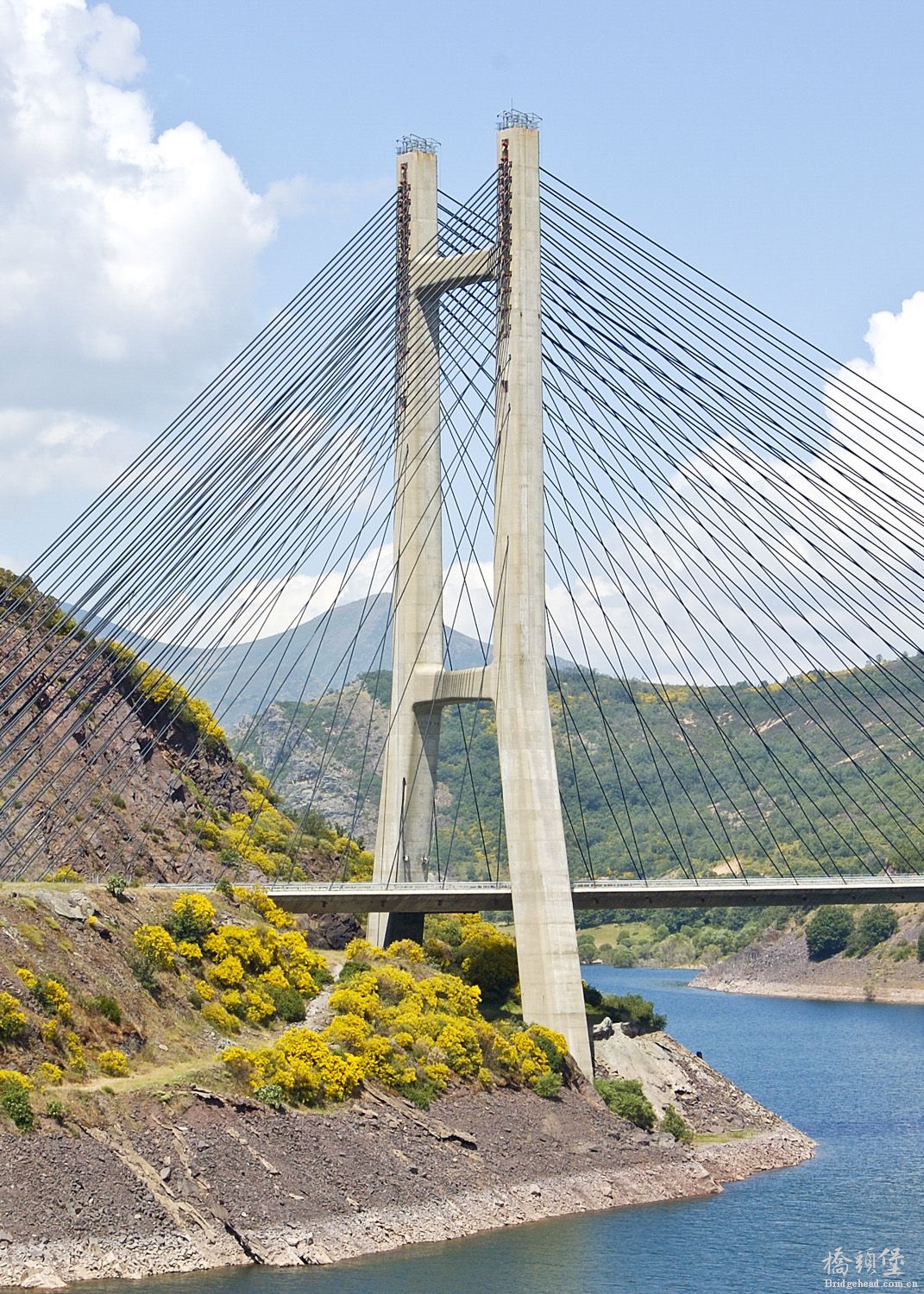

主桥跨径布置为:66+440+66米,桥宽34米,两座H型钢筋混凝土桥塔建在两岸的基岩之上,高度分别为102.3米和117.3米。228根斜拉索由直径0.6英寸的钢丝构成。
The absolute world record in spans until 1986 (The previous World Record went to the St. Nazaire bridge, a combined bridge L=404 m). The World Record for spans in concrete cable stayed bridges until 1995 (The previous World Record went to Brottone L=320 m).
Fig 7.3.2
This bridge has a 440 m long main span and two compensating spans, with counterweights included, measuring 101 m. The expansion joint of the prestressed concrete lintel is found in the centre of the main span, due to the fact that the compensations are exceptionally short because of the morphology of the ground, which prevents being able to place the joints on the end edges without this over complicating the longitudinal mobility of the counterweights.

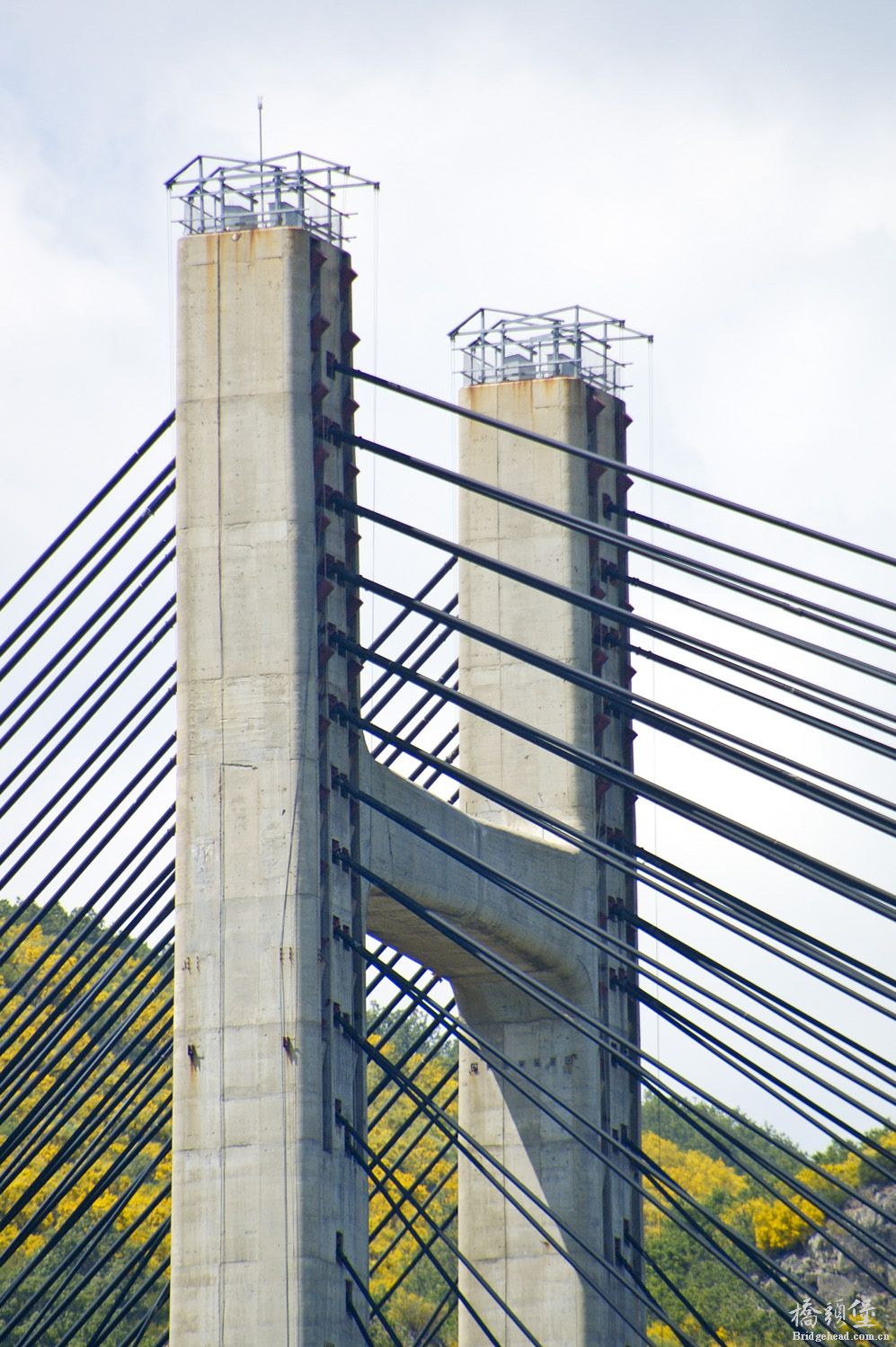

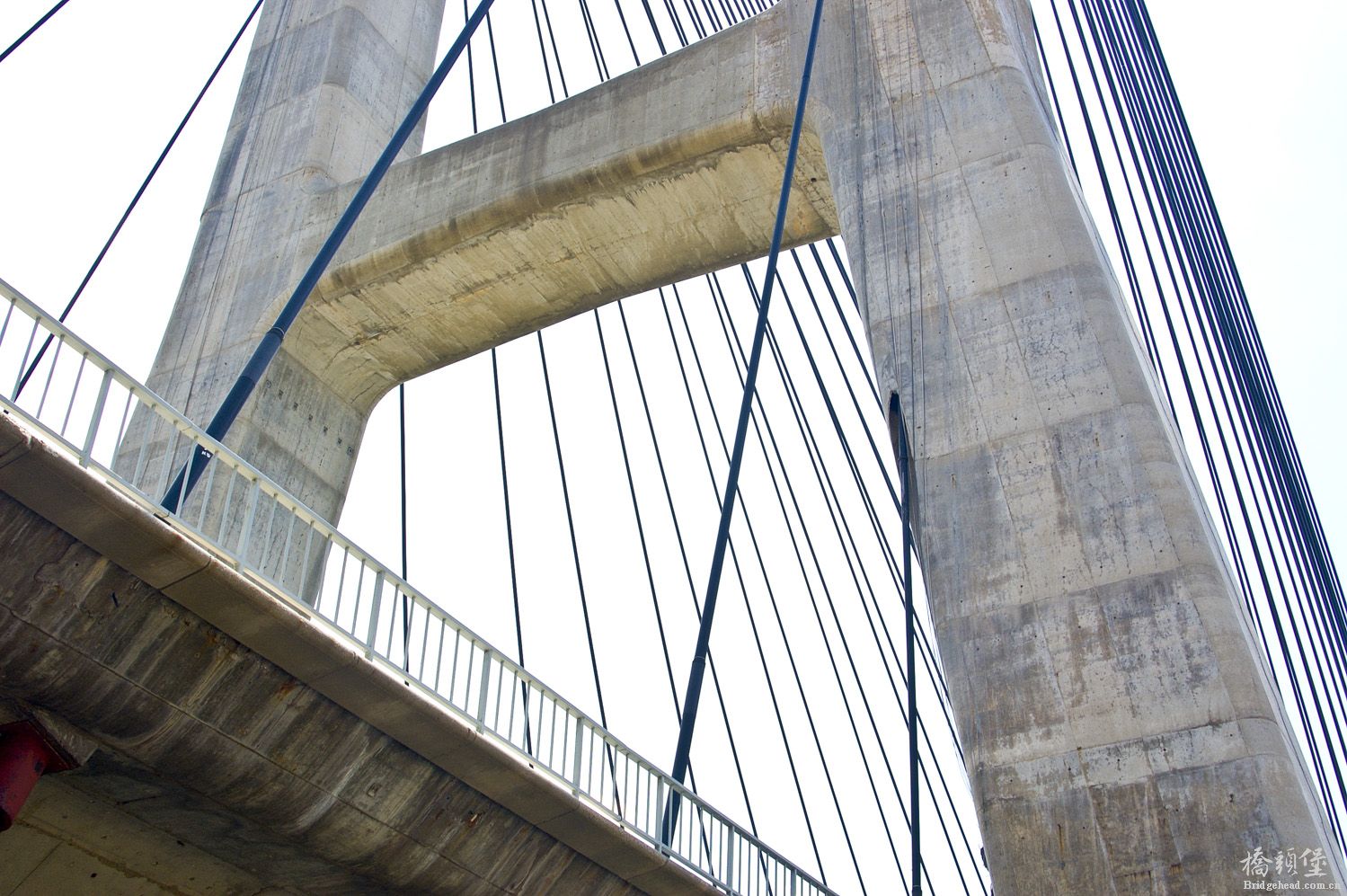

The piers are 123 m high, 90 m high from the lintel, and for the first time they take on the trapezial rectangular shape with a view to maintaining the stays system perfectly vertical, and to also allowing the lintel to cross the pier without touching the bottom section of it.
With a height of 2.3 m, the lintel achieves a slenderness of Ll200.
The stays are arranged with an 8.04 m separation along the lintel. The whole length of the lintel is suspended, even in the pier area, where the lintel only rests horizontally.
This is the first time that we have undertaken a non linear calculation of the bridge performance (the stay-lintel interaction, in both construction and service phases) and also of the whole point charge distribution on the lintel by spatial finite elements.

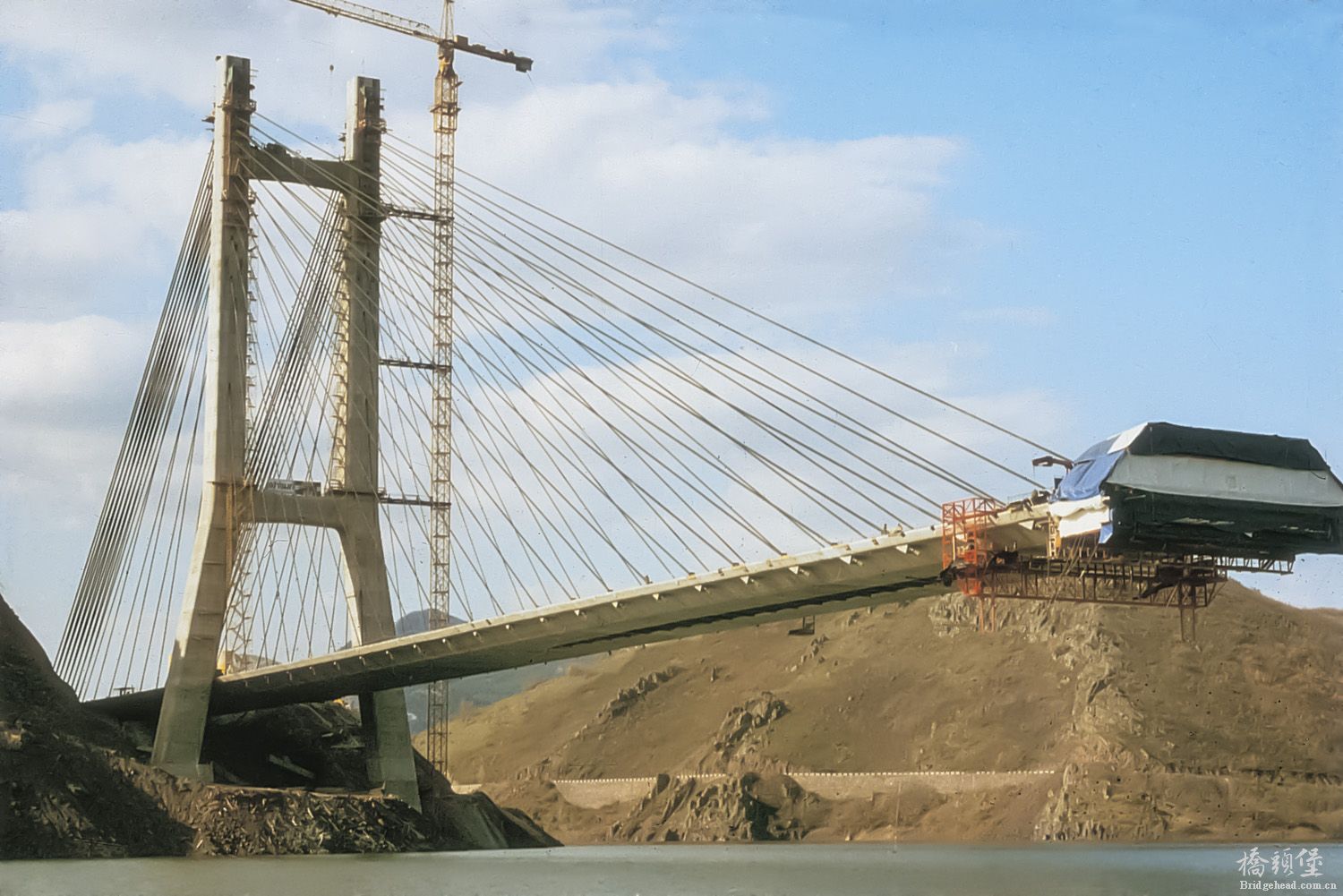

The construction was carried out via the cantilever method with 4.02 m long voussoirs.
