荷兰Melkwegbridge桥设计创意

NEXT建筑事务所设计完成了位于荷兰Purnerend的Melkwegbridge桥。

NEXT建筑事务所的描述
Melkwegbridge桥坐落于荷兰Purmerend。这座桥是“De Kanaalsprong”总体规划设计的一部分，连接了历史悠久的城市中心以及城镇新区。

这座由NEXT建筑事务所设计的桥，最大的亮点在于其巨大的拱门，高于水平线12米，并与 Melkweg位于一条直线上，因此站在桥上可以俯瞰城市美景。

站在桥上眺望美景本身就是一件乐事，行人也可以从分体会到Purmerend新旧中心之间的关系。

自行车以及其他交通工具使用者由100米长的自行车桥面通过该桥。该桥面设计得如同水上的钟摆，所以桥面坡度可以设计为最小值。

由于人行通道和自行车通道是分开的，所以Melkweg路和城市中心间的直接路线可以保留。此外，48米的拱桥依旧通行的最快通道。

人行桥有85吨重，由130级台阶构成，由一个钢制拱门支撑。

此设计使通道以及其周边保持了空间开放性。桥的各个部分完美结合，融为一体。桥体的材质和颜色使得整座桥更加统一。

桥的两侧按照桥体的轮廓装有LED灯，即使在日落之时，也可确保桥的美丽景致。

特别鸣谢翻译一组10号 张晓丽 提供的翻译，译稿版权归译者所有，转载请注明出处。

---

Design: NEXT Architects
Photography: Jeroen Musch and NEXT Architects
NEXT Architects have completed the Melkwegbridge in Purmerend, The Netherlands.
Description from NEXT Architects

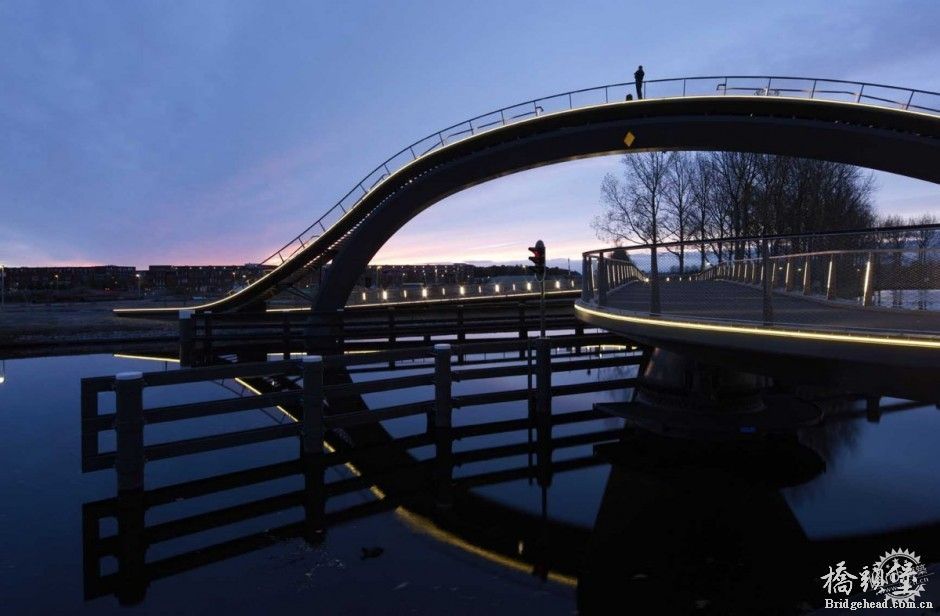

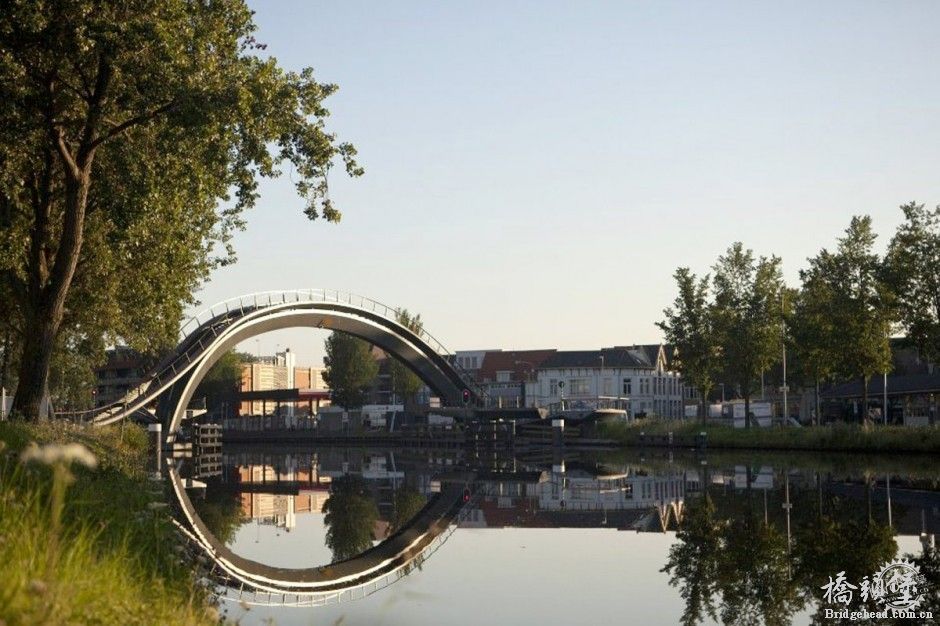

The Melkwegbridge is located in Purmerend, the Netherlands. The bridge is part of the masterplan ‘De Kanaalsprong’ and connects the historic city center with the towns’ new district. The most striking part of the bridge, designed by NEXT architects, is a massive arch which reaches the height of 12m above water level and stands in a continuous line with the Melkweg-road, thus offering an incredible view over the city. The high lookout is an attraction in itself and lets pedestrians fully experience the relation between the new and historic center of Purmerend.

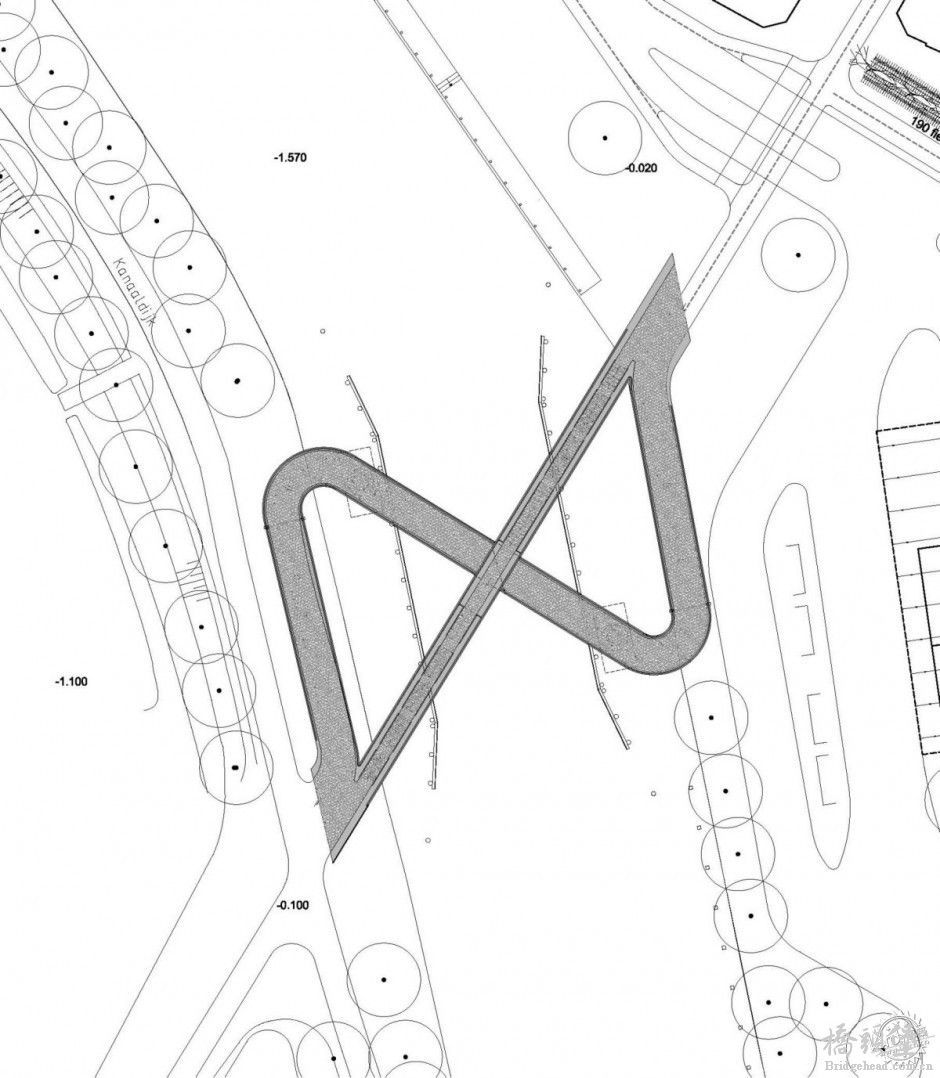

Bicycles and remainder traffic cross the bridge using the 100m long bicycle deck. This deck was designed as a pendulum over the water, so that the slope could be limited to a minimum. Because pedestrian traffic was separated from cyclists, the direct line between the Melkweg-road and city centre could remain. Furthermore the 48m arch remains the fastest possible way to cross the water.

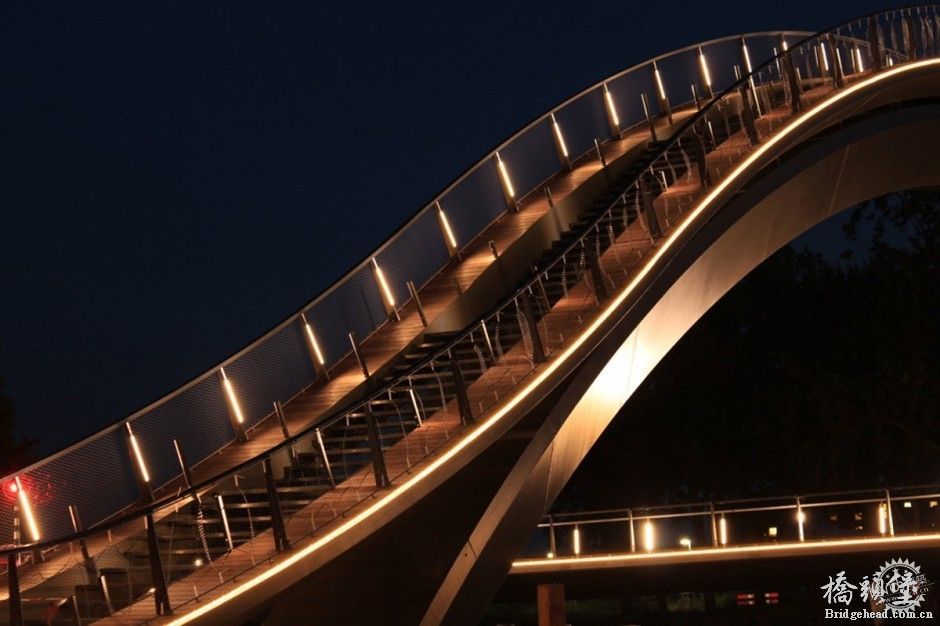

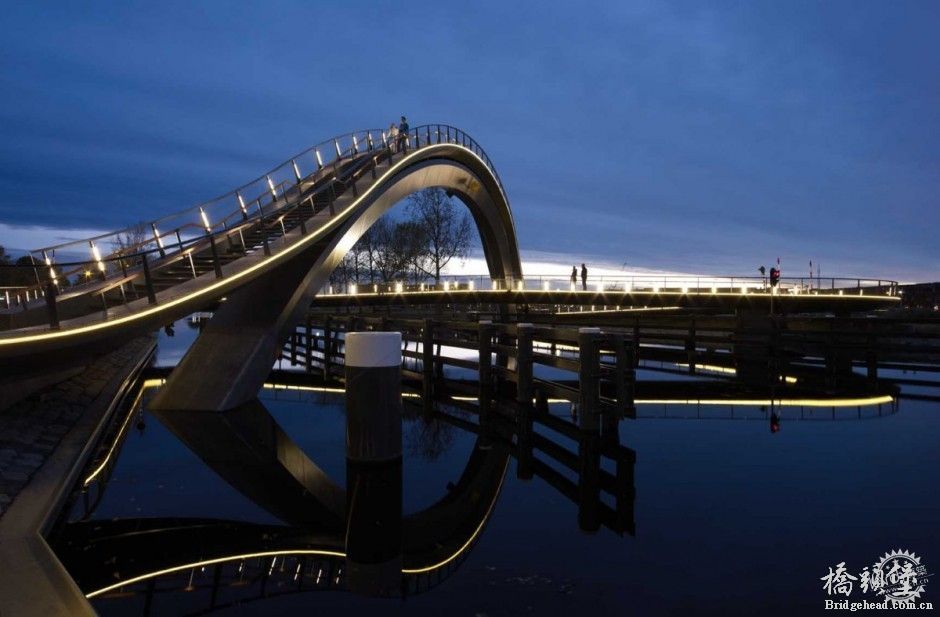

The pedestrian bridge weighs 85 tons, consists of 130 steps and is supported by a steel arch. The design makes it able to retain the spatial openness of the channel and its surroundings. Both bridge sections flow smoothly into each other and form one whole. This unity is enhanced by the continuity of materials and colors. In the edges of the bridge LED lines are applied that follow the contour of the bridge and guarantees a spectacular view on the bridge even after sunset.
