设计院风采之西南交通大学设计院

珠江之贝——广州市猎德大桥
Pearl of ZhuJiang, LieDe Bridge in GuangZhou

广州市猎德大桥，主跨 219+167 米，目前为同类桥型中国第一、世界第二

“中国交通网”相关报道
http://www.iicc.ac.cn/05news/t20050426_18819.htm

猎德大桥侧立面效果图

猎德大桥鸟瞰图

　　猎德大桥位于广州市新城市中轴线核心景观区域，其景观效应至关重要，广州市委、市ZF对该桥的建设十分重视。通过全国桥梁设计方案竞赛、施工设计招标和全国一流桥梁专家的方案评审，最终确定了由西南交大土木工程设计有限公司设计的方案——独塔自锚式悬索桥。该方案具有塔身造型独特，与周边环境协调一致等特点。其主跨跨径219+167米，为目前同类型桥型中世界第二、全国第一；桥塔的贝壳造型可解读出与“母亲河”珠江以及海珠区域的文化渊源。主桥段总投资约3.3亿元人民币。

“南方网”相关报道
http://www.southcn.com/estate/news/gzls/200505080816.htm

猎德大桥正立面夜景效果图

2005年3月在广州召开猎德大桥工程方案评审会， 25位全国桥梁专家到会
桥梁专家郑皆连、范立础院士在评审会上

德阳市长江西路立交桥  Deyang Changjiangxilu Flyover

　　主桥净跨径114m竖琴式无背索斜拉桥，跨越德阳火车南站。桥宽24m，全桥长727m
　　The main bridge, with clear span of 114m and crossing over Deyang South Railway Station, is of harp-like cable-stayed bridge. The bridge is 24m wide and 727m long in totals

成都狮子山立交桥 Shizishan Flyover of Chengdu

　　三环路是成都市的重点建设工程。全长51公里.总投资66亿元。通过设计投标本公司承担了狮子山互通式立交桥的工程设计。大桥主线三环路宽80米。桥梁总长1900米，全桥均按连续梁设计，线形流畅，造型美观，建安工程费7千余万元。由上海域建集团第一市政工程公司施工，于2002年10月竣工。

　　The 3rd Ring Road is one of the key c**truction projects of Chengdu City, totaling 51 km long with total investment of RMB 6.6 billion Yuan. Our company has undertaken the engineering design for Shizishan Flyover through open bidding The flyover is 1900m long in total and the trunk road of the flyover is 80m wide. The continuous beam design features streamlined flyover and bealltiful appearance. The project costs about RMB 70million Yuan as for c**truction and installation and was c**tructed by No.1 Municipal Engineering Corporation of Shanqhai Urban C**truction Group and was completed in Oct.2002.

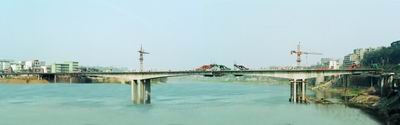

内江市桐梓坝沱江大桥 Neijiang Tongziba Tuojiang Bridge

　　原名内江市沱江三桥，主桥为70+1 26+70米三孔连续刚构双薄壁墩桥。桥宽33米，双向六车道，为改善现有交通状况，并结合桥址地形，大桥北岸形成互通式立交，南岸为下穿式立交，大桥气势宏伟，功能齐全。

　　The bridge was formerly known as Neijiang N0.3 Tuojiang Bridge. its main bridge is 70+126+70 m three-arch continuous steel-structure double thin wall pier bridge. The bridge is 33m wide and of double-way 6 lanes. In order to improve the current traffic situation and combine with landforms 0f the bridge location, it is designed as interchange flyover north of the bridge and underpass flyover south of it. The bridge is of magnificence and of full functi**.

福建漳州西洋坪大桥 Xiyangping Bridge of Zhangzhou, Fujian

“漳州市人民ZF网”相关报道
http://www.zhangzhou.gov.cn/ShowArticle.asp?ArticleID=2857

主跨150米钢管混凝土拱桥

3月26日，漳州市区西环城路横跨九龙江的西洋坪大桥建设方案经过专家联审最终确定，将于7月1日开工建设，预计总投资1.67亿元，工期20个月。
　　西洋坪大桥横跨于九龙江上，北起规划中的瑞京路，南至南江滨路。大桥主桥桥型采用平行拱肋中承式钢管混凝土系杆拱桥，主桥长230米，主桥桥面宽度33 米。主桥主跨为净跨径150米的中承式钢管混凝土拱桥，两个边跨各长40米。该项目业主由市城市建设开发有限公司承担。
　　建成后的西洋坪大桥将成为西环城路横跨九龙江的重要组成部分，是芗城区连接桥南新区的主要通道之一。桥梁结构在设计中综合考虑使用功能和景观价值，造型简洁流畅，远眺像长虹卧波于九龙江上，又似鱼儿在江上欢欣跳跃，将成为我市一道新的风景线。下图为西洋坪大桥设计效果图。

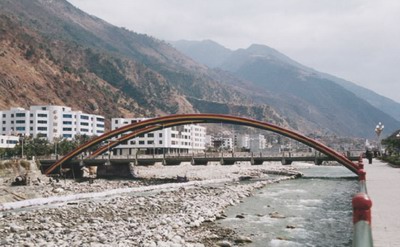

雅安市沿江廊桥 Ya'an Bridge Along the River

遂宁市城南立交桥 Sining Chengnan Flyover

桥梁全长384.5m，主桥宽30m，2002年12月第一期工程竣工
The bridge is 384.5m in total and its main bridge is 30m wide. The first phase project was completed in Dec. 2002

绵竹市回澜立交桥 Mianzhu Huilan Flyover

跨越绵竹火车站 316m，桥宽38m
Crossing Over Mianzhu Railway Station, the bridge is 316m long and 38m wide

成都市二环路清水河立交桥
Qingshuihe Flyover of Chengdu 2nd Round Way

上跨桥桥长 530m 桥宽 13.75mX2，主跨采用变截面连续梁。
底层跨清水河，桥长 50m 桥宽 65m。工程总投资 6800 万元。

成都市二环路交大路立交桥
Jiaoda Flyover of Chengdu 2nd Round Way

桥长 488m 桥宽 13.75mX2 采用变截面鱼腹式连续箱梁

成都市沙河建设路桥 Chengdu Shahe Jianshelu Bridge

桥梁全长38m，桥宽40m，为短腿刚构
The short-legged steel-structure bridge is 38m long and 40m wide

石棉县南桠河大桥 Shimian County Nanyahe Bridge

一孔72m钢管砼中承式拱桥
One-arch 72m steel pipe concrete half-through arch bridge

绵竹市景观跨线大桥 Mianzhu sightseeing Railway-Crossing Bridge

桥梁长301m，跨越德天铁路，根据地形特点采用上跨与下穿相结合
Crossing over Detian Railway, the bridge is 301m long, mingled with overpass and underpass based on landform features

都江堰伏龙观吊桥 Dujiangyan Fulongguan Suspension Bridge

遂宁市涪江三桥中标方案 Shuining No.3 Fujiang Bridge

全桥长1395米，桥宽34米，主桥为207+118米，异形塔斜拉桥
The cable-stayed bridge is 1395m long in total and 34m wide. The main bridge is 207+118m
